Zenith Record Changer and Cartridge Information

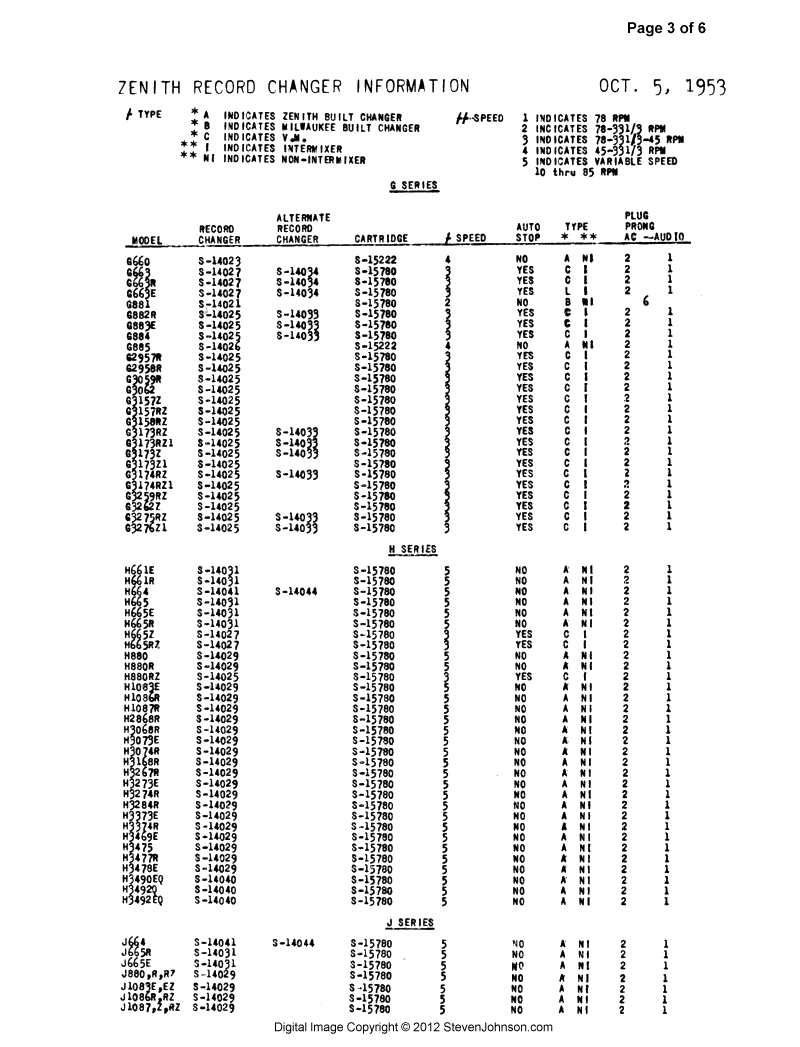

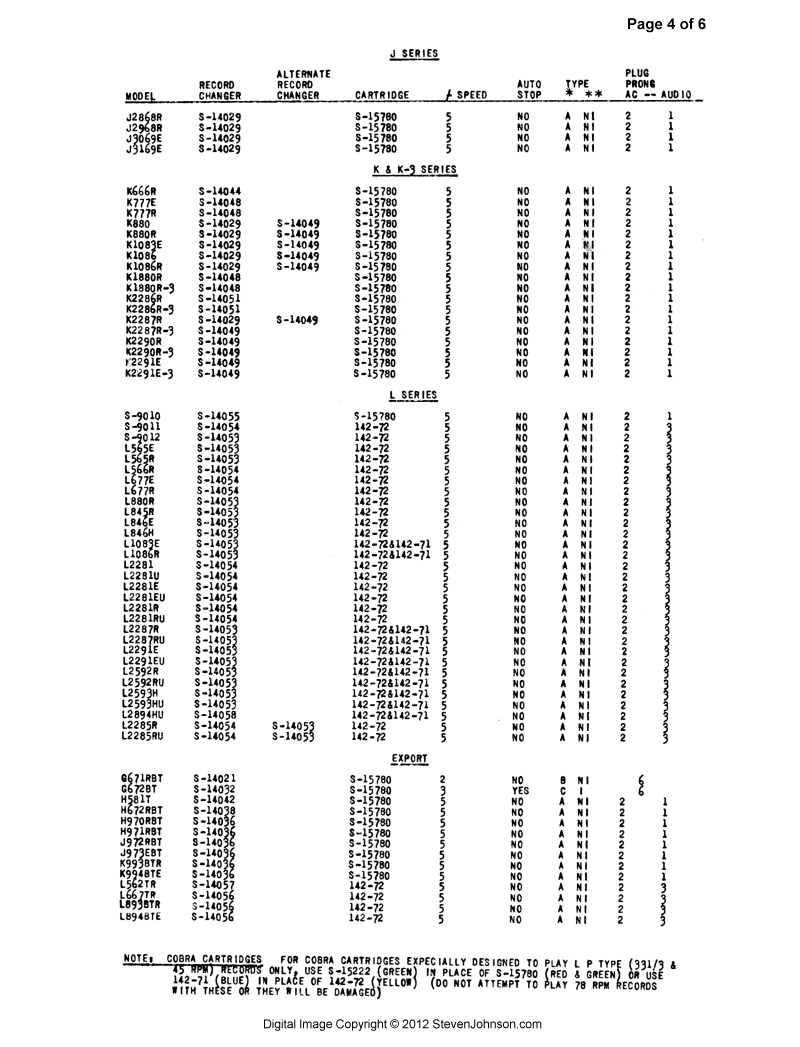

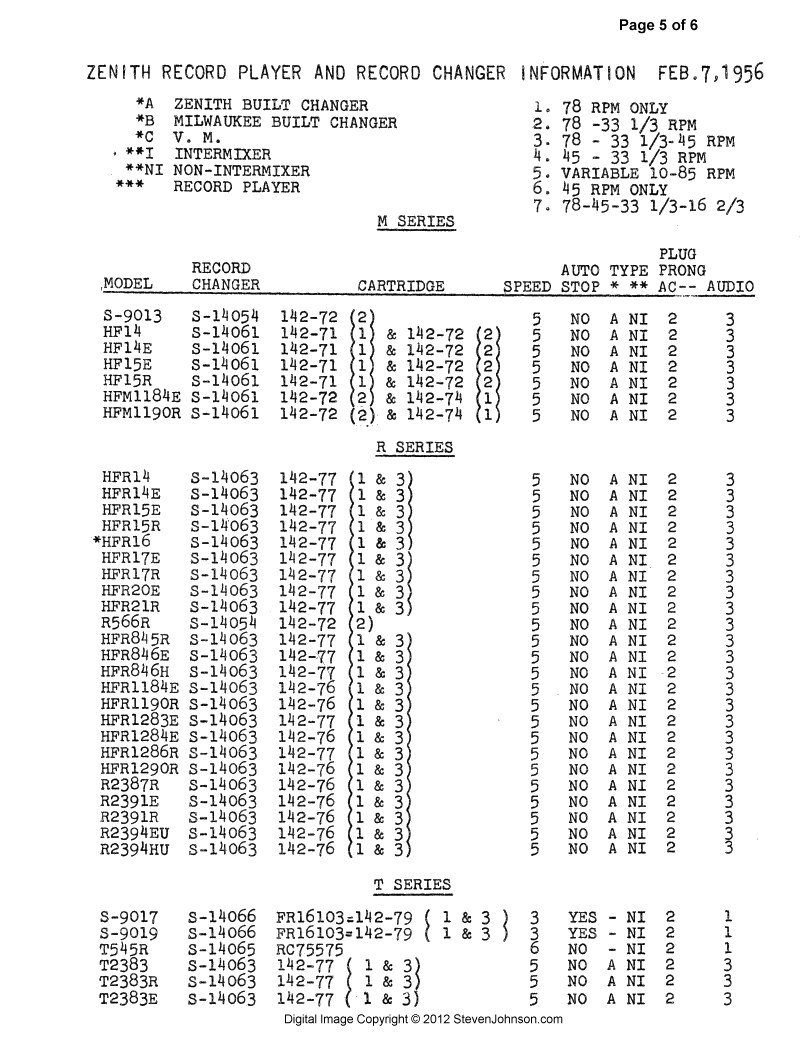

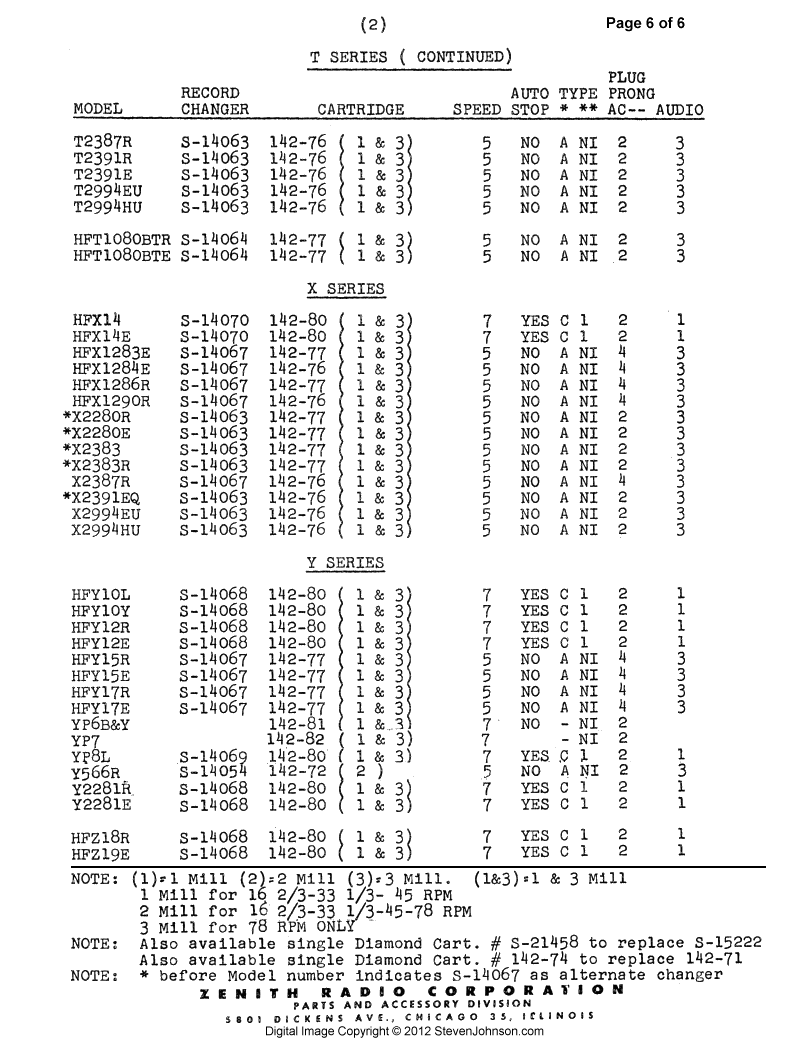

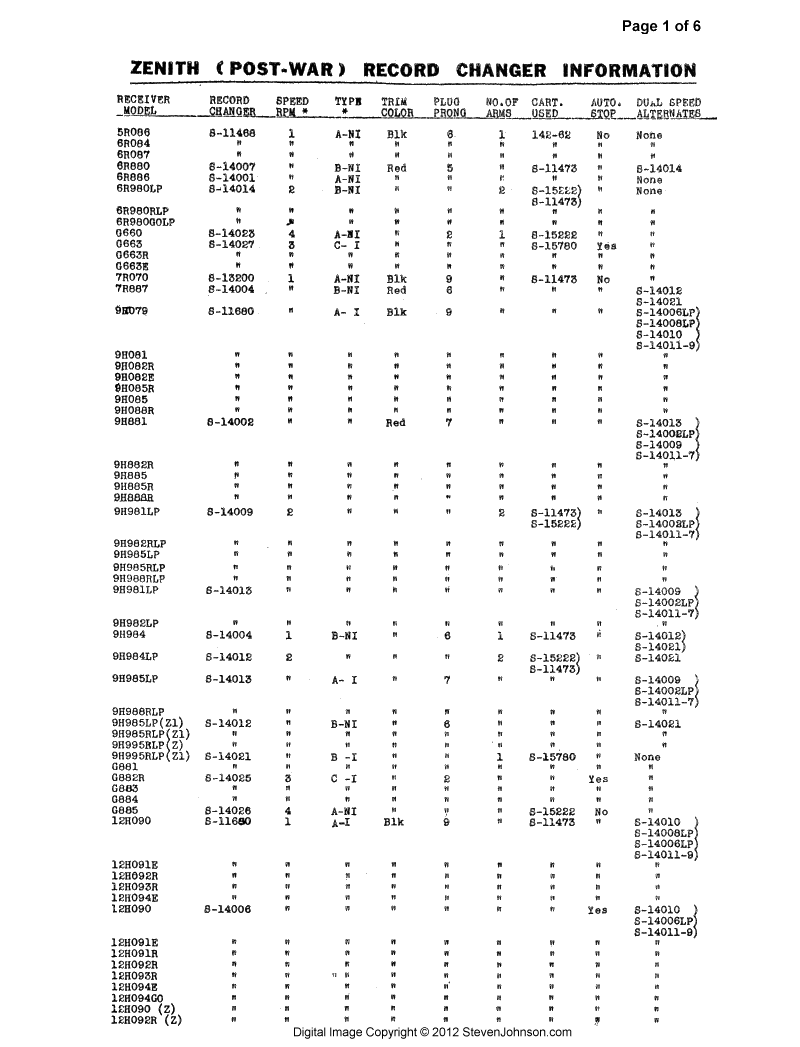

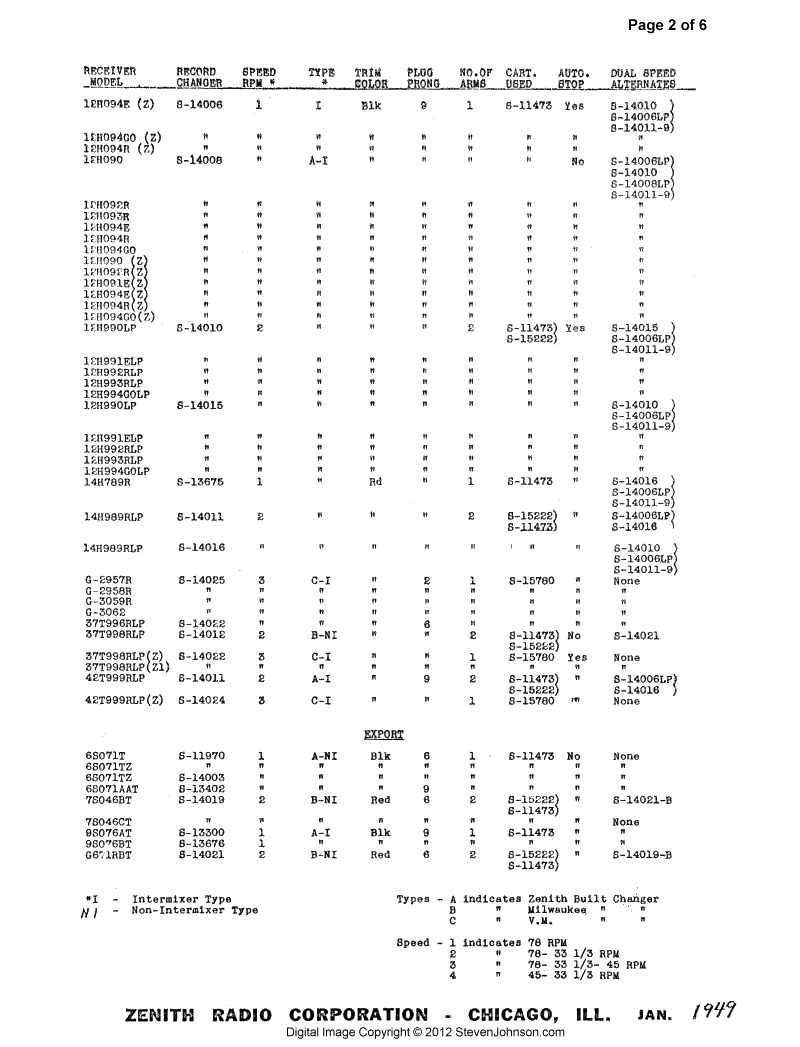

Zenith Record Changer Information directly
from Zenith factory service data sheets.

For Zenith radio, record changer, and phonograph
service manuals and schematics Go Here.


For eariler models not listed below see the original Zenith factory service manual.











The data and files offered here are from vintage sources that are no longer published. There is no guarantee of the accuracy of any information offered. It is solely up to the end user to decide that the information and files offered here are accurate and fit for use with their equipment. I am not responsible for any loss or damages that may be incurred from the use of this information.
